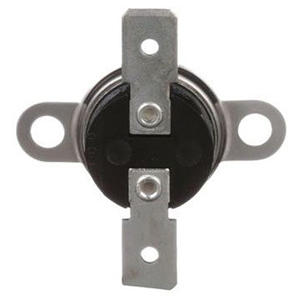

THERM-O-DISC THERMOSTAT LIMIT 165 CUT OUT 125 CUT IN NICKEL

Name: THERM-O-DISC THERMOSTAT LIMIT 165 CUT OUT 125 CUT IN NICKEL
Brand: White Rodgers

Part #3L01-165

MFG #3L01-165

120/240 VAC, 10/5 A, 125 VA Pilot Duty, 165 Deg F Open/125 Deg F Close, 1/4" Quick-Connect Terminal, 3/4" Snap Disc, Adjustable Temperature, Automatic Reset, Limit Control, Thermostat

Price:

Consumer Financing

Brand: White Rodgers

Approval: UL, CSA, VDE

Size: 1.23 Inch Length x 1.32 Inch Width x 0.37 Inch Height

Type: Snap Disc, Adjustable Temperature, Automatic Reset, Limit Control

Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 60 Amp at 120 Volt AC/30 Amp at 240 Volt AC (Locked Rotor), 25 Amp (Resistive)

Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)

Switch Type: SPST, Open on Rise

Temperature Rating: 350 Deg F (Ambient), 165 Deg F (Open), 125 Deg F (Close), 40 Deg F (Differential)

Voltage Rating: 120/240 Volt AC

Catalog

Loose ring, stainless steel mounting brackets
Mounting holes match standard 3/4" snap discs
1/4" quick-connect terminals
Last three numbers indicate cut-in temperatures on fan controls and cut-out temperatures on limits
