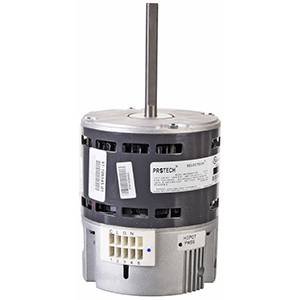

Motor - SelecTech Gen 3 (230V - 1/2 hp)

The SelecTech motor is a durable, easy to integrate, Electrically Commutated Motor (ECM) solution for high efficient direct drive blower applications. The available nine discrete 24 volt tap settings are fully programmable on your assembly line for different airflow requirements. Rugged and simple to operate, the SelecTech® is setting a new benchmark for reliable ECM technology.

• Robust ECM design
• Integrates easily into existing air moving systems with simple 24V control and constant torque operation
• Fully potted electric module for superior moisture protection
• Motor Type: SelecTech Gen 3
• HP: 1/2
• No. of Speeds: Variable
• Input Voltage (V): 208
• Input Voltage (V): 230
• Frequency (Hz): 60
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-39/64
• Keyed/Flat Shaft Length (in.): 4
• Overall Shaft Length (in.): 4-1/2
• Motor Body Length (in.): 7-5/16
• Overall Motor Length (in.): 11-13/16
• Mounting: Shell-band
• Frame Size: 48Y
• Bearing Type: Ball
• Application: Blower
• Drive Type: Direct Drive
• Blank Replacement Module: 51-107406-06
• Blank Motor: 51-106545-00
• Programming Kit: K33C
