Wagner Motors | Direct Drive Furnace Blower Motor

MULTIPLE HORSEPOWER CONDENSER FAN MOTOR RESCUE 1/6 - 1/3 HP 230V

Part #WG840465

MFG #WG840465

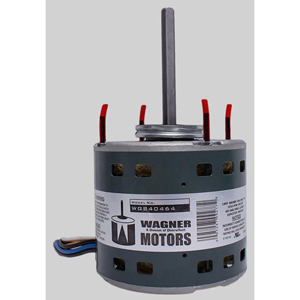

This Wagner® WG840465 Multiple Horsepower Condenser Fan Motor, 208-230V, 1075/2 Speed, 1/3-2.8 HP-FLA, 1/4-2.0 HP-FLA, 1/5-1.7 HP-FLA, 1/6-1.5 HP-FLA is specially designed to cover a range of applications. The condenser fan motors range from 1/2 to 1/5. 1/3 to 1/6 both at 1075 rpm. 1/3 to 1/6 at 825rpm. These motors feature reversing plugs. Installs with all 48 frame mounting brackets. This product was made by DiversiTech for the DiversiTech branded items.

Price:

Consumer Financing

Brand: Wagner Motors

Application: HVAC

Frequency Rating: 60 Hertz

Insulation Class: B

Motor FLA: 2.8 Amp at 1/3 HP, 2 Amp at 1/4 HP, 1.7 Amp at 1/5 HP, 1.5 Amp at 1/6 HP

Mounting: Shaft Up/Shaft Down/Belly Band

NEMA Frame Size: 48

Number of Speeds: 2

Power Rating: 1/6 to 1/3 HP

Reversible: Yes

Speed Rating: 1075 RPM

Voltage Rating: 208 to 230 Volt AC

Data Sheet

Technical Specifications

Catalog

Extended Bolts - Extended Mounting Bolts Provides Easier Installation in Cramped Spaces and Allows the Installer to Start the Threaded Mounting Nut Quickly and Efficiently
Supportive Foam Cradle - A Unique Styrofoam Cradle Inside the Motor Carton Supports and Protects the Motor, Shaft and Mounting Bolts During Shipment
Large Label - The Informative Product Label Contains the Motor Model Number in Large, Easily Identifiable Type
Capacitor Size on Box - The Size of 370 Volt AC Run Capacitor is Noted on Every Motor Carton
Ball Bearings - Fractional Horsepower Motors Include Ball Bearings Which Allow Greater Heat Endurance, Improve Performance, Increase Reliability and Enhance Motor Life
Large Wiring Diagram - Detailed and Large Wiring Diagrams are on the Motor and the Motor Carton and also in the Installation and Safety Instruction Sheet, The Wiring Diagrams are Very Easy to Read
Carton Handle - The Motor Carton has Been Designed with an Innovative Handle to Make the Motors Much Easier to Carry
Insulated Disconnects - Run Capacitor Connections are Insulated for Increased Safety, The Flag Disconnects on Condenser Fan Motors and In-Line Disconnects on Direct Drive Furnace Blower Motors are Provided
