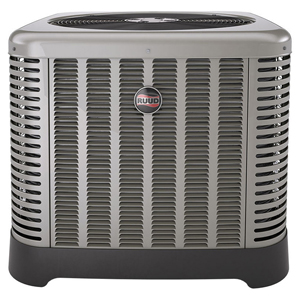

Ruud | Air Conditioner | RA1360AJ1NB

AIR CONDITIONER CONDENSING UNIT 5 TON R410A 13 SEER

Part #RA1360AJ1NB

60000 BTU/Hr, 208/230 VAC 60 Hz 1-Phase, 1600 CFM, 13.5 SEER/11.5 EER, R-410A, Galvanized, Bonderized Powder Painted, Steel, Rooftop/Ground Mount, Non-Communicating, Scroll Compressor, 1-Stage, Air Conditioner

Price:

FTL Financing Available* Details

Brand: RUUD

BtuH Cooling: 60000

Depth: 35.75 Inch

Height: 31 Inch

Nom Tons: 5

Width: 35.75 Inch

SEER: 13

Stage: Single Stage

Max AMPs: 60

Energy Star: Yes

Liquid Conn: 3/8

Suction Fitting: 7/8

Technical Specifications

New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
Powder coat paint system - for a long lasting professional finish
Scroll compressor - uses 70% fewer moving parts for higher efficiency and increased reliability
Modern cabinet aesthetics - increased curb appeal with visually appealing design
Curved louver panels - provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
Optimized fan orifice - optimizes airflow and reduces unit sound
Rust resistant screws - confirmed through 1500-hour salt spray testing
Diagnostic service window with two-fastener opening - provides access to the high and low pressure
External gauge port access - allows easy connection of "low-loss" gauge ports
Single-row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance
35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal
Service trays - hold fasteners or caps during service calls
QR code - provides technical information on demand for faster service calls
Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
Energy Star® Rated
