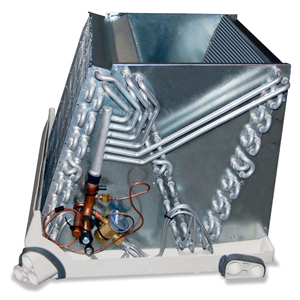

FURNACE EVAPORATOR COIL CASED 3-TON 21 WIDE TXV

Name: FURNACE EVAPORATOR COIL CASED 3-TON 21 WIDE TXV
Brand: RUUD

Part #RCF3621HTAMCA

MFG #RCF3621HTAMCA

21" W, 3 Ton, Horizontal, Evaporator Cased Coil for Gas and Oil Furnace

Price:

Brand: RUUD

Caseing: CASED

Metering: TXV

Orientation: Multi-position

Width: 21.75 Inch

Height: 21 inch

Depth: 34.5 Inch

Line Size: 7/8 X 3/8

High efficiency lanced fin design
No-hassle 5 year warranty
R-22, R-410A, AC & Heat Pump compatible
All coils have durable packaging with bar coded labels on the box
Piston options include externally accessible body for easy piston change out and/or TXV installation
Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan
UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer
Dual 3/4" FPT condensate drains on front-left and front-right side of drain pans
Patented HydroTEC™ low water retention drain pan
Copper refrigerant connections for easy brazing on both copper and aluminum slab models
Intertek lab tested 1% or less cabinet air leakage for better efficiency
Cased coil cabinets are fully lined with 5/8" foil faced insulation
Optional painted or embossed galvanized steel cabinets
Short cabinet with easy access
Non-captive refrigerant lines with long stubs make for easy installation
Enhanced refrigerant pipe grommets: secure, tight, and easy to install
Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV
Made in USA
