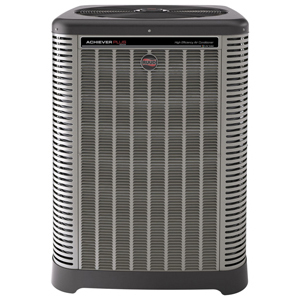

AIR CONDITIONER CONDENSING UNIT 2 TON 17 SEER 2-STG COM
Part #UA1724AJ2CB
24000 BTU/Hr, 208 to 230 VAC 60 Hz 1-Phase, 16 A, 17 SEER, R-410A, Communicating, Scroll Compressor, High/Low Pressure Control, 2-Stage, Air Conditioner
Price:
Login For Price
FTL Financing Available*Ā Details
- Brand:Ā RUUDBtuH Cooling:Ā 24000Depth:Ā 33.75 InchHeight:Ā 35 InchNom Tons:Ā 2SEER:Ā 17Width:Ā 33.75 InchStage:Ā 2 StageMax AMPs:Ā 25Energy Star:Ā YesLiquid Conn:Ā 3/8Suction Fitting:Ā 3/4
- EcoNetā¢ Enabled product
- The EcoNet Smart Home System provides advanced air and water control for maximum energy savings and ideal comfort
- New composite base pan- dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Powder coat paint system for a long lasting professional finish
- The Two Stage Copeland Scrollā¢ Ultra Techā¢ Compressor modulates between two capacity settings 67% and 100% providing more precise temperature control, lower humidity and greater efficiency in comparison to single stage compressors
- It uses 70% fewer moving parts which also increases efficiency and reliability
- Modern cabinet aesthetics increased curb appeal with visually appealing design
- Curved louver panels provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Optimized fan orifice optimizes airflow and reduces unit sound
- Rust resistant screws confirmed through 1500 hour salt spray testing
- Plus Oneā¢ Expanded Valve Space - 3 inch-4 inch-5 inch service valve space provides a minimum working area of 27 square inches for easier access
- Plus Oneā¢ Triple Service Access 15 inch wide, industry leading corner service access makes repairs easier and faster
- The two fastener removable corner allows optimal access to internal unit components
- Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
- Diagnostic service window with two-fastener opening provides access to the high and low pressure
- External gauge port access allows easy connection of low-loss gauge ports
- Single-row condenser coil makes unit lighter and allows thorough coil cleaning to maintain out of the box performance 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal
- Service trays hold fasteners or caps during service calls
- QR code provides technical information on demand for faster service calls
- Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
- High and low pressure standard on all models
- Energy StarĀ® Rated
