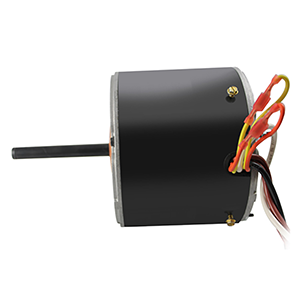

MOTOR CONDENSER PSC 1/6 HP 1075 RPM 208/230 1PH 48 FRAME
Part #1859
MFG #K055WMR1279012B
Permanent Split Capacitor
Condenser Fan
5.6" Dia. Totally Enclosed Air Over
140°F (60°C) Ambient Design
Single Horsepower
Price:
- Brand: US Motors
-
Model Number K055WMR1279012B Product Name .167 HP - TEAO - 1075 Phase Type 1_PERMANENT SPLIT CA Motor Enclosure TEAO Horsepower .167 Kilowatts 0.1 Poles 6 Number of Speeds 1 RPM 1075 Hertz 60 Volts Primary 208-230 V Volts 208 Volts 2 230 Frame (FRME) 48 Shaft Code Y Stator Diameter 5.5 Stack 0.875 Mounting STUD/BAND Motor Type FHP Opposite End Bearing 6201 Shaft End Bearing 6201 Ambient (°C) 60 Rotation CCW LEAD END REV Service Factor 1 Run Cap (MFD) 5 Run Cap (Volts) 370 Shipping Weight (lbs) 9 Thermal Protection AUTOMATIC RESET Breakdown Torque 17.09 OZFT Locked Rotor Torque 6.179 OZFT Insulation Class B Locked Rotor Amps 1.98 Full Load Amps Primary 1.0
