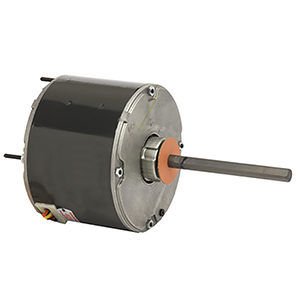

MOTOR CONDENSER PSC 1/2HP 825 RPM 208/230 1PH 48 FRAME
Part #1870 MOTOR
MFG #K055TMT9568862B
Permanent Split Capacitor
Condenser Fan
5.6" Dia. Totally Enclosed Air Over
140°F (60°C) Ambient Design
Single Horsepower
Price:
- Brand: US Motors
-
Model Number K055TMT9568862B Product Name .5 HP - TEAO - 825 Phase Type 1_PERMANENT SPLIT CA Motor Enclosure TEAO Horsepower 0.5 Kilowatts 0.4 Poles 8 Number of Speeds 1 RPM 825 Hertz 60 Volts Primary 208–230 V Volts 208 Volts 2 230 Frame (FRME) 48 Shaft Code YZ Stator Diameter 5.5 Stack 3 Mounting STUD Motor Type FHP Opposite End Bearing 6203 Shaft End Bearing 6203 Ambient (°C) 60 Rotation CW/CCW Service Factor 1 Run Cap (MFD) 12.5 Run Cap (Volts) 370 Shipping Weight (lbs) 22 Thermal Protection AUTOMATIC RESET Breakdown Torque 79.77 OZFT Locked Rotor Torque 12.51 OZFT Insulation Class B KVA Code Letter C Locked Rotor Amps 6.55 NEMA Nominal Efficiency 69.8 Full Load Amps Primary 2.8
