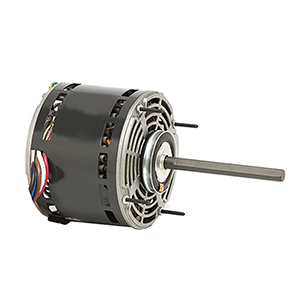

BLOWER PSC 1/3HP 1075/3SPD 208/230 1PH 48FR
Part #1972
MFG #K055WML1257012B
Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over (OAO)
Stud or Hub Ring Mount
3-Speed
- Brand: US Motors
Model Number K055WML1257012B Product Name .33 HP - OAO - 1075 Phase Type 1_PERMANENT SPLIT CA Motor Enclosure OAO Horsepower 0.33 Kilowatts 0.3 Poles 6 Number of Speeds 3 RPM 1075 Hertz 60 Volts Primary 208–230 V Volts 208 Volts 2 230 Frame (FRME) 48 Shaft Code Y Stator Diameter 5.5 Stack 1.5 Mounting BAND/HUB/STUD Motor Type FHP Opposite End Bearing 6201 Shaft End Bearing 6201 Ambient (°C) 40 Rotation CCW LEAD END REV Service Factor 1 Run Cap (MFD) 7.5 Run Cap (Volts) 370 Shipping Weight (lbs) 12 Thermal Protection AUTOMATIC RESET Breakdown Torque 38.7 OZFT Locked Rotor Torque 12.48 OZFT Insulation Class B Locked Rotor Amps 4.09 Full Load Amps Primary 1.9
