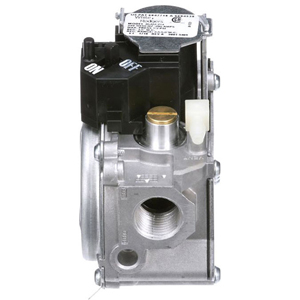

VALVE GAS FAST HSI/DSI 1/4” HOSE BARB

Name: VALVE GAS FAST HSI/DSI 1/4” HOSE BARB
Brand: White Rodgers

Part #36J22-214

MFG #36J22-214

1/2", FPT x FPT, 24 VAC 50/60 Hz, 1/2 PSI, Natural/Liquid Propane Fuel, Straight Through, Fast Opening, 1-Stage, Gas Valve

Price:

Consumer Financing

Brand: White Rodgers

Applicable Standard: CSA (Canada and US)

End Connection: Female Threaded x Female Threaded

Inclusions/Features: Convertible Natural/Liquid Propane Gas, Liquid Propane Gas Conversion Kit, Inlet/Outlet Pressure Tap, Reducer Bushing Kit, Filter Screen

Nominal Size: 1/2 Inch

Pressure Rating: 1/2 PSI

Temperature Rating: -40 to 175 Deg F

Type: Straight Through, Fast Opening, 1-Stage, Electronic Ignition System

Exclusions: Side Tap

Input Supply Rating: 24 Volt AC at 50/60 Hertz, 0.3 Amp

Documentation

Installation

Technical Specifications

Catalog

Convertible Natural/Liquid Propane Gas
Adjustable Regulator
Inlet/Outlet Screen
Quiet Redundant
Built-In Pressure Tap
Quick-Connect Terminals
Electric On-Off Switch and Convenient Quick-Connect Coil Terminals and Built-In Pressure Taps
Tamper Resistant Screw and Controlled Gasket Compression to Withstand High Inlet Pressures
Mounts in any Position Including Upside Down
