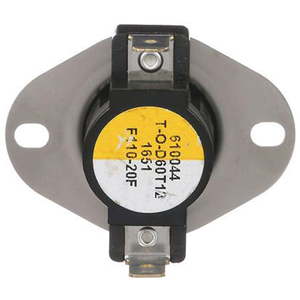

White-Rodgers Snap Disc Fan Control Thermostat

3/4” SNAP DISC FAN CONTROL, CUT-IN 110 DEG F, CUT-OUT - 90°F

Name: 3/4” SNAP DISC FAN CONTROL, CUT-IN 110 DEG F, CUT-OUT - 90°F
Brand: White Rodgers

Part #3F01-110

MFG #3F01-110

120/240/277 VAC, 110 Deg F Cut-In, 90 Deg F Cut-Out, 3/4" Disc, 1/4" Quick-Connect Terminal, Aluminum Disc Cup, SPST, Close on Rise, Automatic Reset, Snap Disc Fan Control Thermostat

Price:

Consumer Financing

Brand: White Rodgers

Size: 3/4 Inch Disc

Type: Automatic Reset

Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)

Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)

Switch Type: SPST, Close on Rise

Temperature Rating: 110 Deg F (Cut-In), 90 Deg F (Cut-Out)

Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)

Catalog

Designed for Quick On-Job Replacement
Last Three Numbers Indicate Cut-Out Temperatures on Limits and Cut-In Temperatures on Fan Controls
Mounting Holes Match Standard 3/4 Inch Snap Discs
Tab-To-Screw Terminal Adapters Furnished
