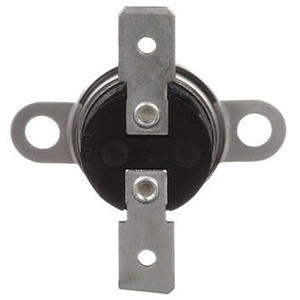

3/4” SNAP DISC FAN CONTROL, CUT-IN 120 DEG F, CUT-OUT - 110°F
Part #3F01-120
MFG #3F01-120
120/240/277 VAC, 120 Deg F Cut-In, 110 Deg F Cut-Out, 3/4" Disc, 1/4" Quick-Connect Terminal, Aluminum Disc Cup, SPST, Close on Rise, Automatic Reset, Snap Disc Fan Control Thermostat
Price:
- Brand: White RodgersSize: 3/4 Inch DiscType: Automatic ResetCurrent Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)Switch Type: SPST, Close on RiseTemperature Rating: 120 Deg F (Cut-In), 110 Deg F (Cut-Out)Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
- Designed for Quick On-Job Replacement
- Last Three Numbers Indicate Cut-Out Temperatures on Limits and Cut-In Temperatures on Fan Controls
- Mounting Holes Match Standard 3/4 Inch Snap Discs
- Tab-To-Screw Terminal Adapters Furnished
