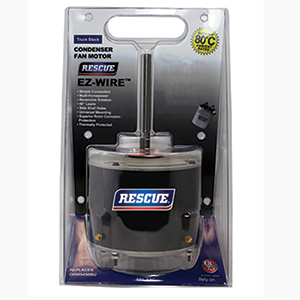

RESCUE PSC1/6-1/2HP 1075 RPM/4SPD 115V 48 FR
Part #5432 MOTOR
MFG #K055KPP3345012B
RESCUE® EZ-Wire™ Permanent Split Capacitor
Direct Drive Blower
5.6" Dia. Open Air Over (OAO)
Multi-Horsepower Clear Packaging
U.S.A. made capacitors included
Price:
- Brand: US Motors
-
Model Number K055KPP3345012B Product Name .5 HP - OPAO - 1075 Phase Type 1_PERMANENT SPLIT CA Motor Enclosure OPAO Horsepower 0.5 Kilowatts 0.4 Poles 6 Number of Speeds 4 RPM 1075 Hertz 60 Volts Primary 115 V Volts 115 Stator Diameter 5.5 Stack 2.25 Mounting RING/STUD Motor Type FHP Opposite End Bearing SELF-ALIGN Shaft End Bearing SELF-ALIGN Ambient (°C) 40 Rotation CCW LEAD END REV Service Factor 1 Run Cap (MFD) 10 Run Cap (Volts) 370 Shipping Weight (lbs) 16 Thermal Protection AUTOMATIC RESET Breakdown Torque 57.37 OZFT Locked Rotor Torque 10.63 OZFT Insulation Class B KVA Code Letter J Locked Rotor Amps 14.51 Full Load Amps Primary 7.3 Service Factor Amps Primary 7.3
