Aspen Manufacturing Air Conditioner Downflow Coil

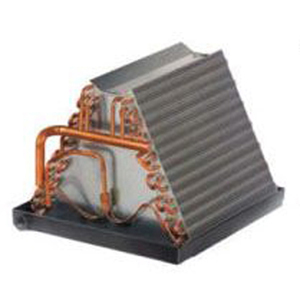

AIR CONDITIONER EVAPORATOR COIL UNCASED 2-TON LH MOBILE HOME

Name: AIR CONDITIONER EVAPORATOR COIL UNCASED 2-TON LH MOBILE HOME
Brand: Aspen Manufacturing

Part #CM24B24-177L-000

MFG #CM24B24-177L-000

CM Series uncased downflow coils for use with manufactured home furnaces. 17-3/4" x 19-3/8" x 15-1/2", 24000 BTU/Hr, Enhanced Aluminum Fin, Rifled Copper Tubing, Heavy Duty Polypropylene Darin Pan, Thermostatic Expansion Valve, 2-Row, R-410A.

Price:

Consumer Financing

Brand: Aspen Manufacturing

Capacity: 24000

Caseing: UNCASED

Nom Tons: 2

Orientation: Downflow

Width: 17 3/4 Inch

Height: 13.5 Inch

Depth: 19 5/8 Inch

Rifled copper tubing, enhanced aluminum fins.
Immersion-tested at 500 psi, then nitrogen-pressurized and sealed.
Left-hand refrigerant and plumbing connections.
Liquid line - 3/8” ODS, suction line - 3/4” ODS on 1 1/2- 3 ton & 7/8” ODS on 3 1/2 - 5 ton.
Liquid line Schrader valve for hiss-testing.
Heavy duty polypropylene drain pans.
Drain connection: 177L pans have single LH 3/4” FPT, 195L pan have quad drains, 3/4” FPT.
Condensate drain elbow and flexible drain tubing included.
Downflow plate kit included.
AHRI certifiable with all brands of A/C and heat pump systems.
ETL listed for use with both R-22 and R-410a when proper metering device is used.
Made in USA
