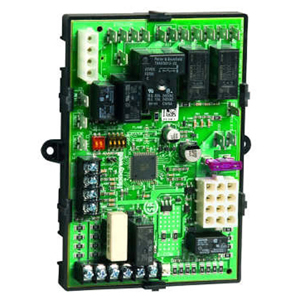

UNIVERSAL HOT SURFACE IGNITION FURNACE CONTROL HSI
Part #S9200U1000
MFG #S9200U1000/U
120 VAC 60 Hz, 2 or 3-Dial, 30 Sec Prepurge, Universal, Hot Surface Ignition Furnace Control
Price:
- Brand: HoneywellType: UniversalApplication: 1-Stage Warm Air FurnaceFlame Failure Response Time: 2 SecondFlame Sense Type: IntegratedIgnition Sequence: 2 or 3-TrialIgnition Source: Hot SurfaceIgnition Trial Time: 4, 6 or 8 SecondPrepurge Time: 30 SecondTemperature Rating: -40 to 175 Deg F
- Universal Integrated Furnace Control offers universal compatibility and diagnostics. It replaces a large number of furnace control models in single-stage warm air furnaces. Uses 120Vac hot surface igniter. Includes instructions and special wire harnesses for easy replacement
- Cross reference and wire harnesses provided for simple replacement over 195 existing furnace controls
- Main burner ignition using a 120V hot surface igniter
- Flame rectification circuit to monitor flame presence
- Monitoring of system pressure switch, high temperature limit, and rollout functions
- Appliance operation/safety requirements controlled via microprocessor
- Controls circulating fan motor based on appliance requirements, in response to a conventional low voltage thermostat
- LED system status, performance and diagnostic indication
- Twinning capability
