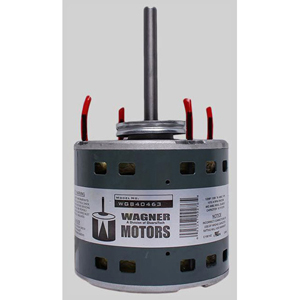

DIRECT DRIVE FURNACE MOTOR BLOWER RESCUE 1/6-1/2 HP 115V
Part #WG840463
MFG #WG840463
1/6 to 1/2 HP, 115 VAC 60 Hz, 7 A at 1/2 HP, 1075 RPM, 4-Speed, 48 Frame, Reversible, Shaft Up/Shaft Down/Belly Band, Gray-Green Powder Coated Permanent Split Capacitor, Multi-Horsepower, Direct Drive Furnace Blower Motor
Price:
- Brand: Wagner MotorsApplication: HVACFrequency Rating: 60 HertzInsulation Class: BMotor FLA: 7 Amp at 1/2 HP, 6.7 Amp at 1/3 HP, 4.4 Amp at 1/4 HP, 3.2 Amp at 1/5 HP, 2.4 Amp at 1/6 HPMounting: Shaft Up/Shaft Down/Belly BandNEMA Frame Size: 48Number of Speeds: 4Power Rating: 1/6 to 1/2 HPReversible: YesSpeed Rating: 1075 RPMVoltage Rating: 115 Volt AC
- Extended Bolts - Extended Mounting Bolts Provides Easier Installation in Cramped Spaces and Allows the Installer to Start the Threaded Mounting Nut Quickly and Efficiently
- Supportive Foam Cradle - A Unique Styrofoam Cradle Inside the Motor Carton Supports and Protects the Motor, Shaft and Mounting Bolts During Shipment
- Large Label - The Informative Product Label Contains the Motor Model Number in Large, Easily Identifiable Type
- Capacitor Size on Box - The Size of 370 Volt AC Run Capacitor is Noted on Every Motor Carton
- Ball Bearings - Fractional Horsepower Motors Include Ball Bearings Which Allow Greater Heat Endurance, Improve Performance, Increase Reliability and Enhance Motor Life
- Large Wiring Diagram - Detailed and Large Wiring Diagrams are on the Motor and the Motor Carton and also in the Installation and Safety Instruction Sheet, The Wiring Diagrams are Very Easy to Read
- Carton Handle - The Motor Carton has Been Designed with an Innovative Handle to Make the Motors Much Easier to Carry
- Insulated Disconnects - Run Capacitor Connections are Insulated for Increased Safety, The Flag Disconnects on Condenser Fan Motors and In-Line Disconnects on Direct Drive Furnace Blower Motors are Provided
