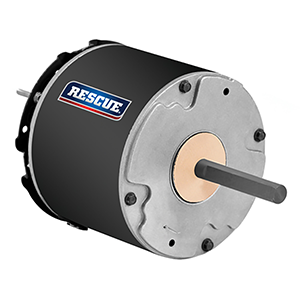

MOTOR CONDENSER RESCUE PSC 1/8-1/12 HP 1075 RPM 208/230 1PH 42 FRAME
Part #5440H
MFG #K048MAH0158012B
RESCUE® Permanent Split Capacitor Motor
MOJAVE® 70C High Ambient Condenser Fan
5.0" Dia. Totally Enclosed Air Over
EZ-FIT® Mounting Multi-Horsepower
4.3" 4.4" and 4.6" Bolt Circle Dia.
- Brand: US Motors
Model Number K048MAH0158012B Product Name .125 HP - ENCLOSED - 1075 Phase Type 1_PERMANENT SPLIT CA Motor Enclosure ENCLOSED Horsepower 0.125 Horsepower 2 0.083 Poles 6 Number of Speeds 1 RPM 1075 Hertz 60 Volts Primary 208–230 V Volts 208 Volts 2 230 Frame (FRME) 42 Shaft Code Y Stator Diameter 4.8 Stack 1.25 Motor Type FHP Opposite End Bearing BALL Shaft End Bearing BALL Ambient (°C) 70 Rotation CCW LEAD END REV Service Factor 1 Run Cap (MFD) 5 Run Cap (Volts) 370 Shipping Weight (lbs) 8 Thermal Protection AUTOMATIC RESET Breakdown Torque 16.56 OZFT Locked Rotor Torque 6.129 OZFT Insulation Class B Locked Rotor Amps 1.81 Full Load Amps Primary 0.8
